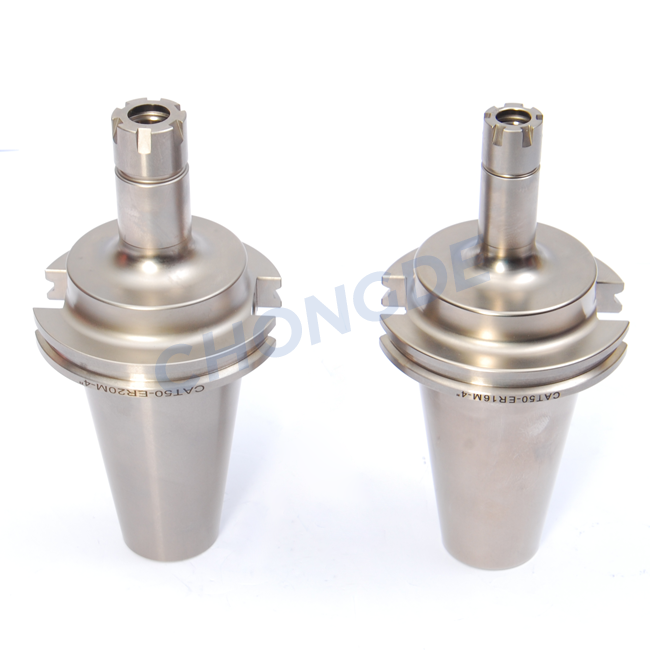

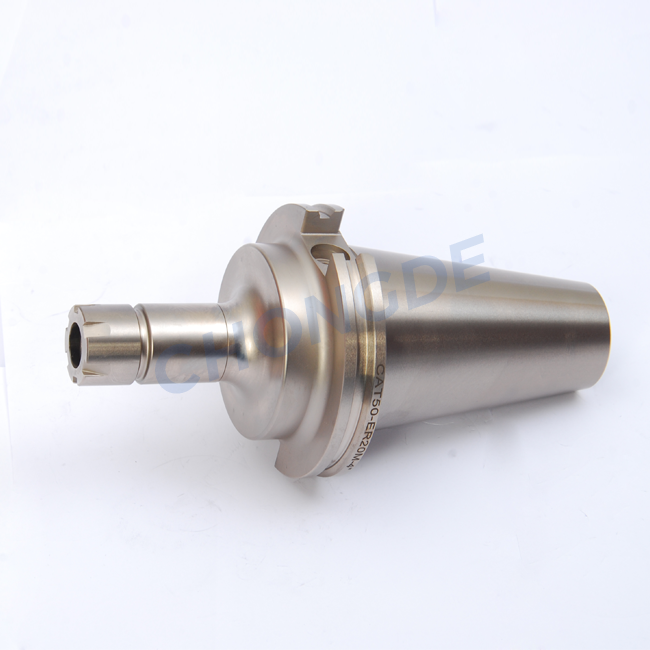

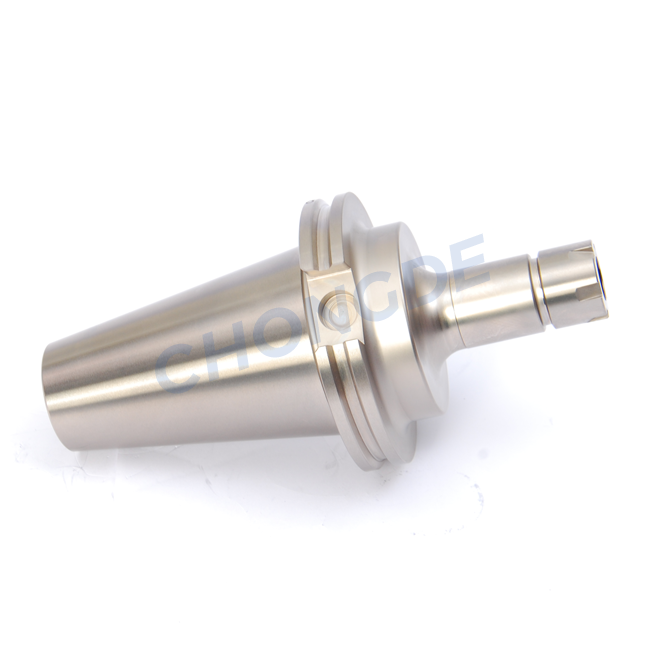

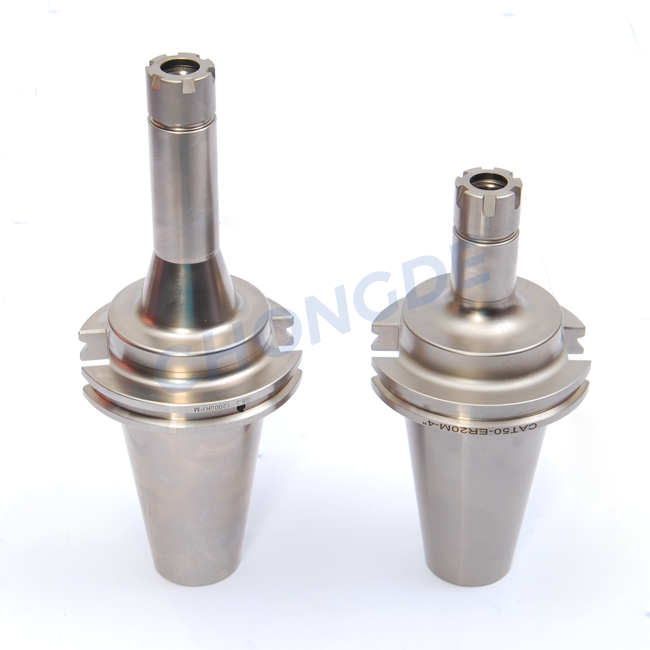

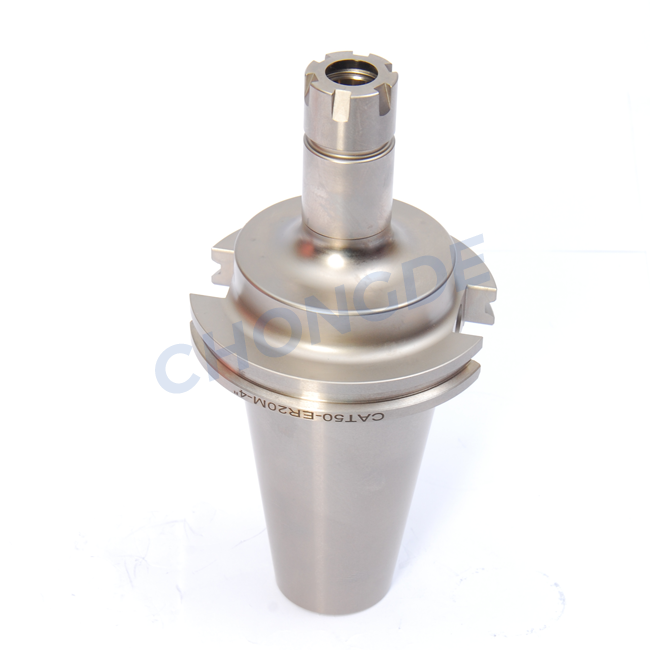

CAT(ANSI B5.50、CT)  ER Collet chuck with M type Nut

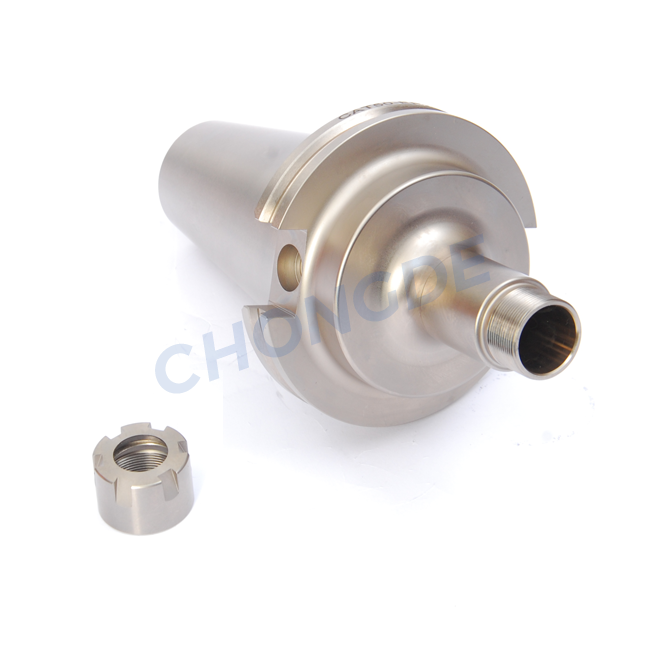

CAT ER spring collet chuck with M type nut, only the Nut is different with the normal CAT ER collet chuck. The feature of M type nut is the small diameter that can prevent interference during operation. CAT ER Spring Collet Chuck Milling Tool Holder, Mechanical spindle and cutting tools and other accessories. High Precision CAT shank Tool Holder, balanced G6.3 or G2.5 For choose, With DIN6499 collet chuck can be straight shank cutter clamping various sizes. Due to the thread is different, the M type tool holder cannot change the nut to other type nut, like A type, UM type and GER type nut.

When ordering, please specify the form: A, AD Or (AD+B).

We are specializing in the production of CAT ER Spring Collet Chuck, we can to figure to sample processing, and perfect after-sales service and technical support. Looking forward to your cooperation!

Features:

1. Material: 20CrMnTi or JIS-SCM415

2. Hardness: 56-60HRC;

3. Carburizing depth: ＞0.8；

4. Roughness： Ra＜0.4u；

5. Using M type nut to prevent interference.

6. Taper precision ≤AT3 and part of the standard size are tested by Diebold standard inspection tools which made in Germany;

7.Run out of the inside shank cone: ≤0.002mm；Coaxiality with collet : ≤ 0.005mm；

8. Dynamic balance can do: G6.3 12000RPM , G2.5 20000~30000rpm；

9. Suitable for boring, milling, drilling, tapping, grinding, carving processing.

Our advantages

1. Good Rigidity

2. High accuracy stability of parts processing and surface processing dimension

3. Improving cutting tool using life

4. The wear of taper shank caused by vibration is reduced during heavy cutting

5. ATC repeats the operation with high accuracy

6. The appearance with nickel coating, the products are anti-rust, anti-corrosion and durability better.

4. Clean appearance and accuracy stable

5. -196℃ long cryogenic treatment and ultra long time thermal aging processing, reducing residual stresses and increasing the hardness and toughness。
