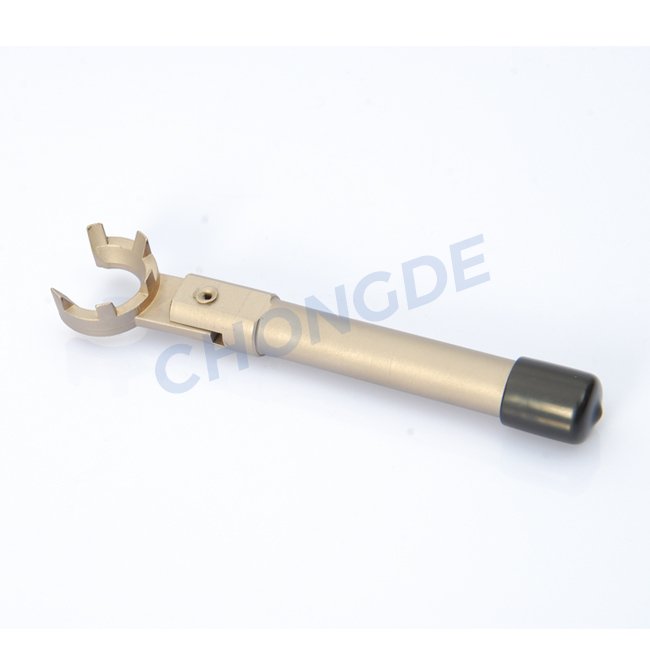

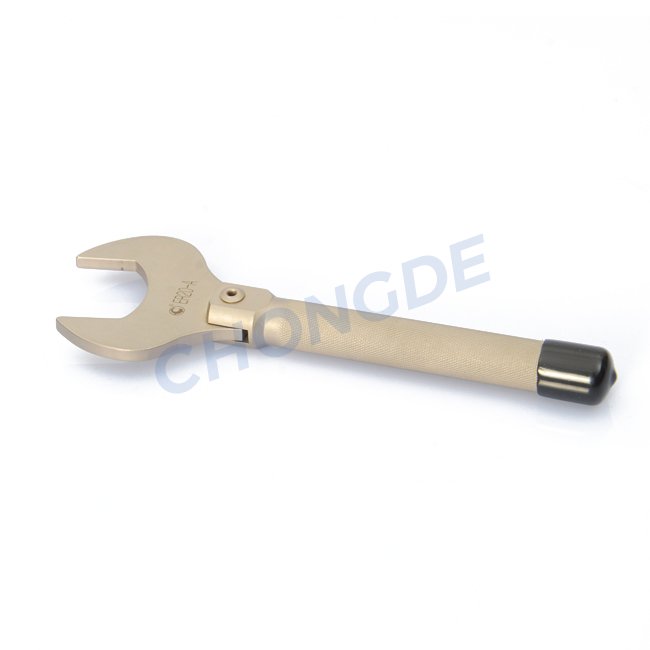

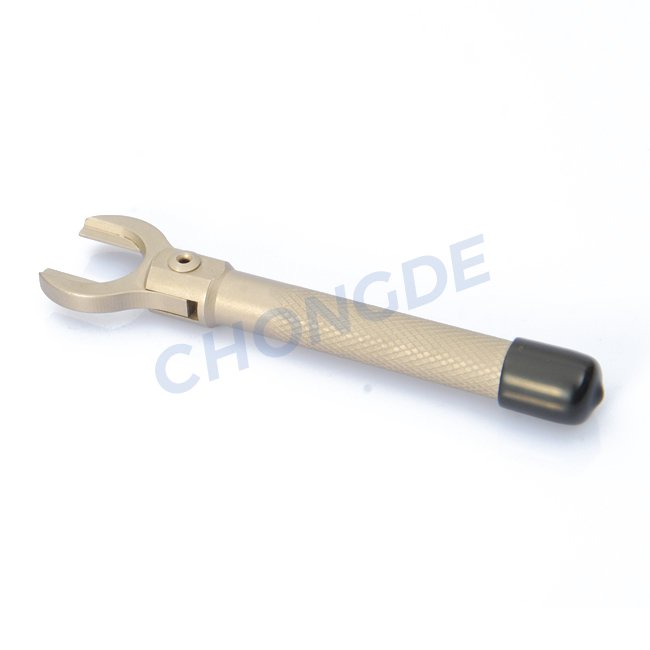

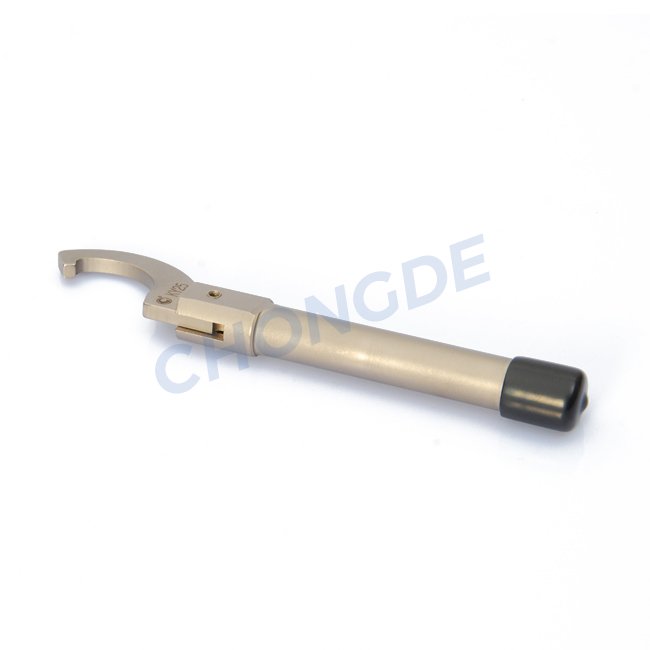

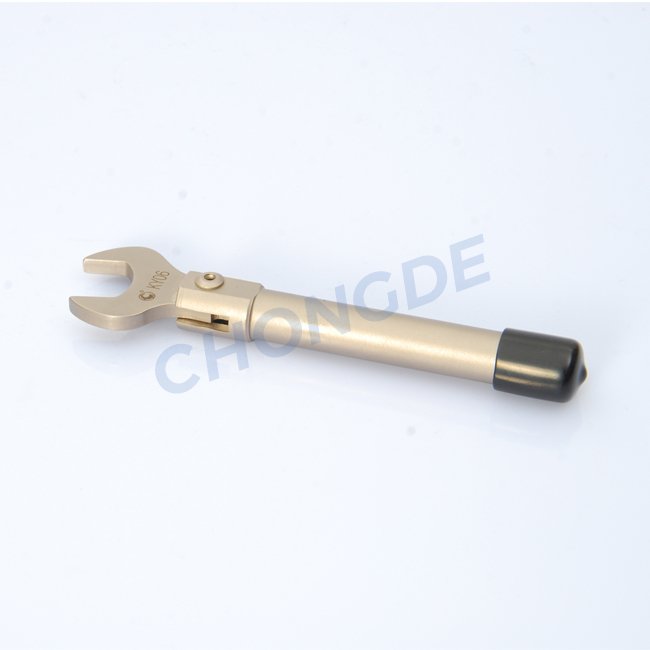

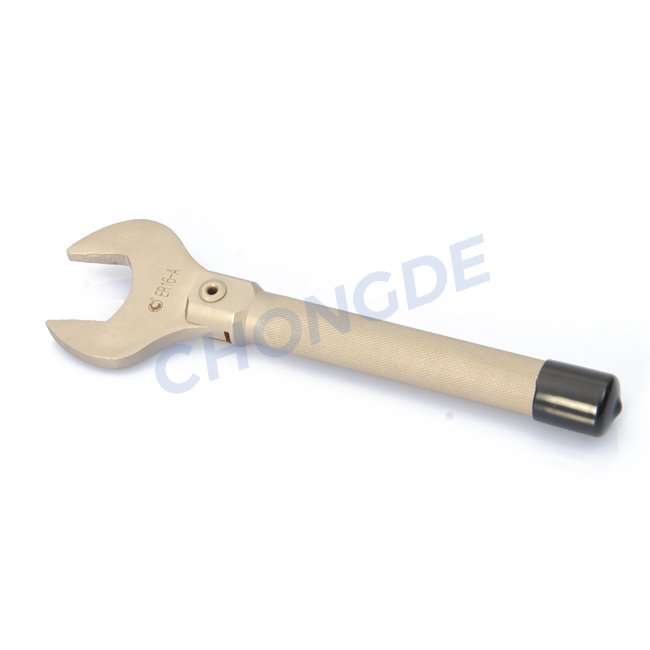

ER TORQUE SPANNER FOR HIGH PRECISION COLLET CHUCK

ER torque wrench for Chongde high precision collet chucks. Torque wrench is pre-set the fixed power for each type, easy to use, saves time and effort. It has simple structure, strong practicability and high quality compare to other torque wrench. It available for ER8, ER11, ER16, ER20, ER25, ER32, ER40, and ER50 collet chuck.

Features:

1. Material: 45# OR 65Mn

2. Hardness: 40-45 HRC;

3. Appearance with sandblasting coating process.

4. Pre-set the fixed power, simple structure and easy to use

5. Ergonomic design of the handle, grip comfort, reduce the high-intensity operating torque spanner when figure.

Product Drawing and Size

Order No.	Type	Type	I	L	Nut	The recommended torque	Drawing
CD010402.1117110	A	ER11A	17	110	ER11A	21
CD010402.1625120		ER16A	25	120	ER16A	42
CD010402.2030130		ER20A	30	130	ER20A	62
CD010402.1111090	M	ER11M	11	90	ER11M	15
CD010402.1615110		ER16M	15	110	ER16M	21
CD010402.2020120		ER20M	19.5	120	ER20M	23
CD010402.1626180	UM	ER16UM	26	180	ER16UM	42
CD010402.2030190		ER20UM	30	190	ER20UM	62
CD010402.2537210		ER25UM	37	210	ER25UM	62
CD010402.3247250		ER32UM	46.5	250	ER32UM	72
CD010402.4058290		ER40UM	58	290	ER40UM	82
CD010402.2552167	S	S/ER25	45-52	167	ER25UM	62
CD010402.3262190		S/ER32	55-62	190	ER32UM	72
CD010402.4072215		S/ER40	68-72	215	ER40UM	82
CD010402.1110100	MR	ER11MR	10	100	ER11MS	15
CD010402.1615135		ER16MR	15	135	ER16MS	21
CD010402.2018160		ER20MR	18	160	ER20MS	23
CD010402.1601150	G	GH27-￠1	27.1	150	GER16	10
CD010402.1615150		GH27（￠1.5-￠3.5）	27.1	150		25-30
CD010402.1604150		GH27（￠4-￠10）	27.1	150		50-55
CD010402.2001160		GH33（￠1-￠3）	33	160	GER20	15-20
CD010402.2035160		GH33（￠3.5-￠5.5）				30-35
CD010402.2006160		GH33（￠6-￠9）				50-55
CD010402.2095160		GH33（￠9.5-￠13）				70-75
CD010402.2510181		GH40（￠1-￠3）	40	181	GER25	25-30
CD010402.2535181		GH40（￠3.5-￠6.5）				35-40
CD010402.2507181		GH40（￠7-￠10）				55-60
CD010402.2511181		GH40（￠10.5-￠16）				80-90
CD010402.3202200		GH50（￠2-￠3）	50	200	GER32	30-35
CD010402.3235200		GH50（￠3.5-￠6.5）				55-60
CD010402.3275200		GH50（￠7.5-￠15.5）				110-120
CD010402.3216200		GH50（￠16-￠20）				130-140
