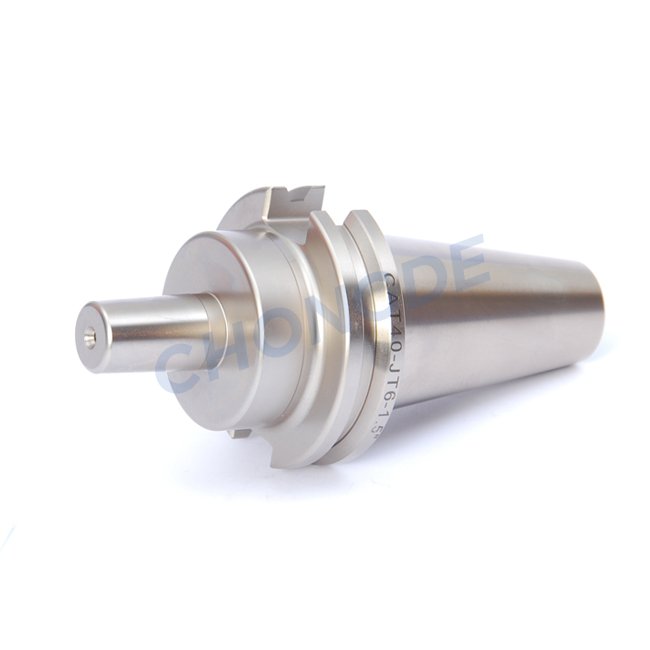

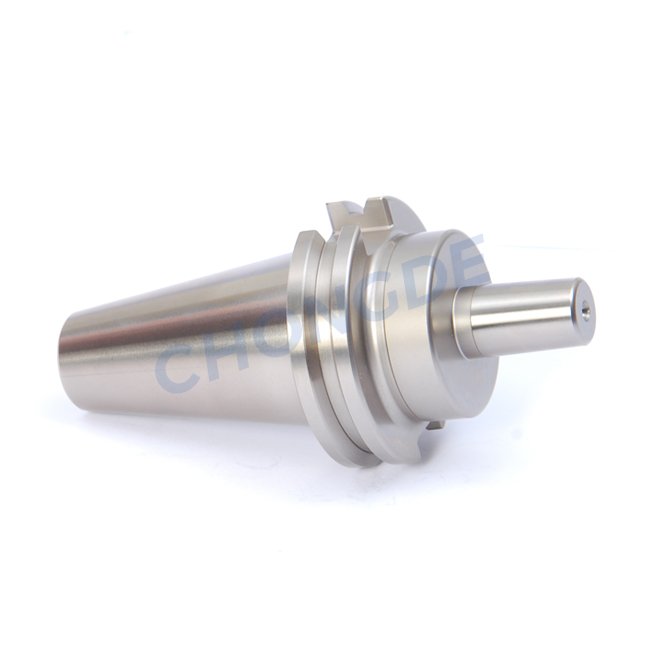

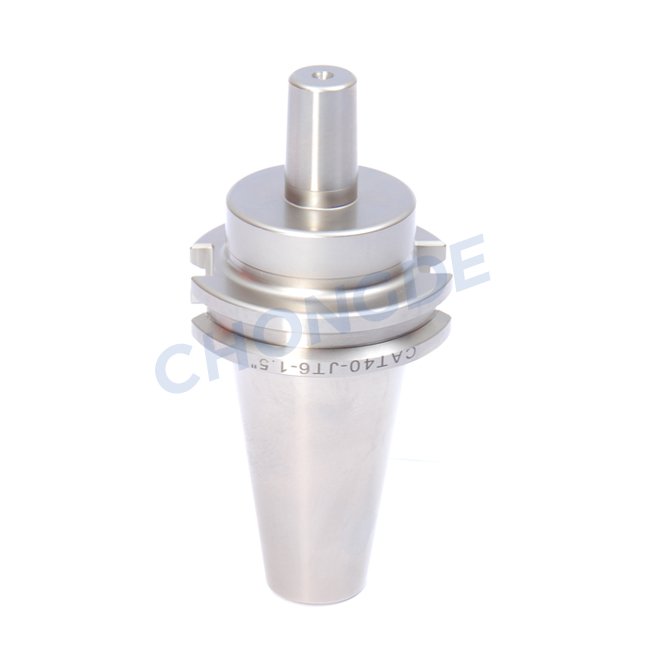

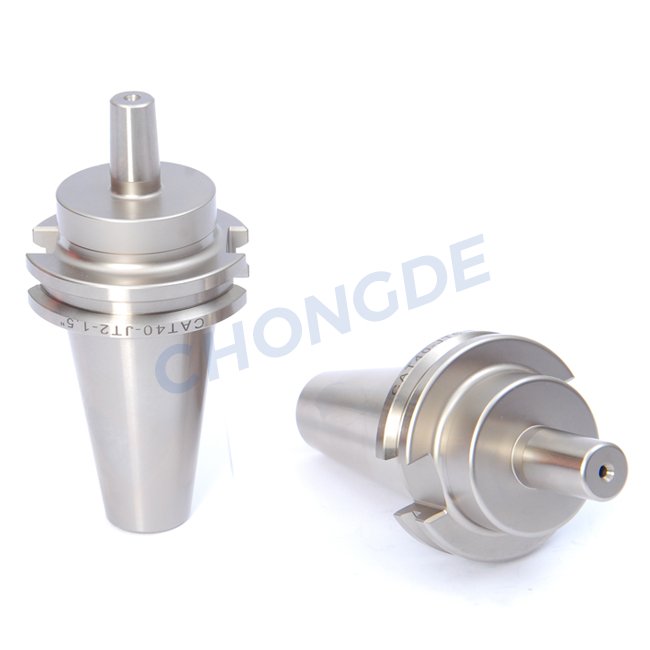

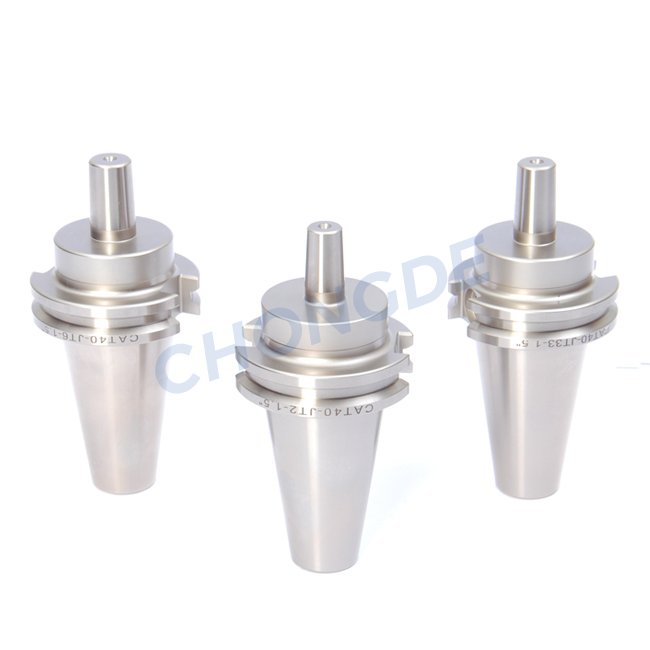

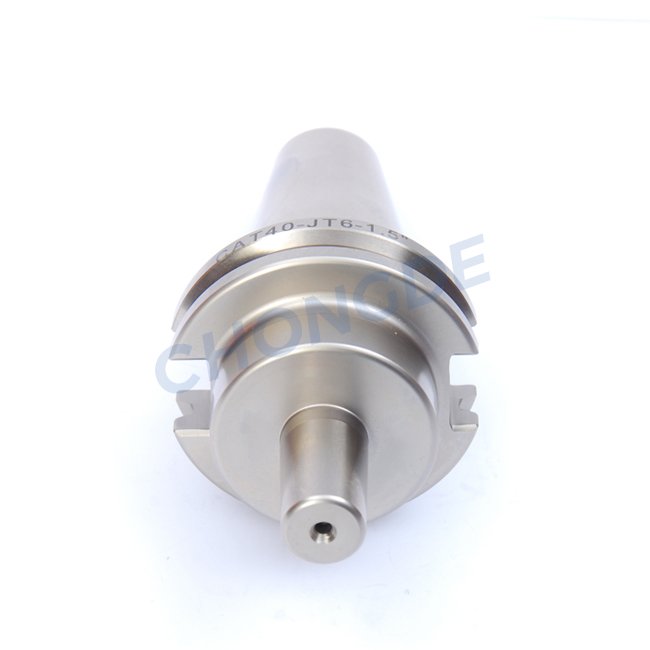

Nickel Coating CAT40/50 Jacobs Taper Tool Holder

CAT 40/50 Jacobs Taper adapters are used for holding a tapered shank or tool holder. Produced according to AT3 specifications, the tools are made by high quality steel : 20CrMnTi. So it has better T.I.R (≤0.0002″) and high rigidity (56 – 60 HRC) than standard drill chucks. Use with keyless Jacobs Taper Drill Chuck. Remind the products not coolant thru capable.

Features:

1. TIR: ≤0.0002″

2. Material: 20CrMnTi

3. Works on all CAT40/50 Machines

4. Rear thread for pull stud is 5/8″ – 11 for CAT40, 1”-8 for CAT50

5. Constructed of alloy steel hardened to 56 – 60 HRC

7.Taper tolerance: ≤AT3; Taper is tested by Diebold standard inspection tools which made in Germany;

8. Nickel coating or polish nickel coating tool holder surface: Anti-rust, Anti-corrosion, durability better.

Our advantages

1. Material: 20CrMnTi

2. Great value and excellent quality

3. Total indicated runout : ≤ 0.0002″

4. Hardened and precision ground

5. Holds Jacobs Taper drill chucks

6. Used in milling & other machines having CAT40/CAT50  taper spindles

7. Nickel coating surface, Anti-rust, anti-corrosion, durability better.
