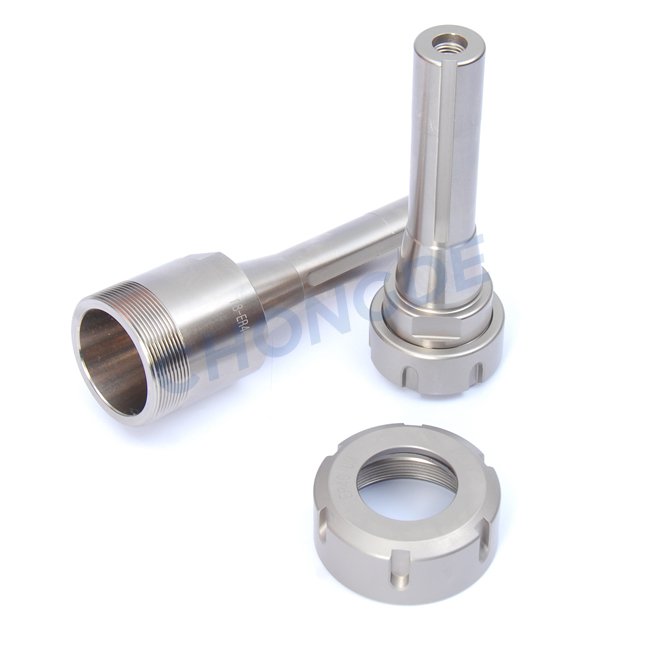

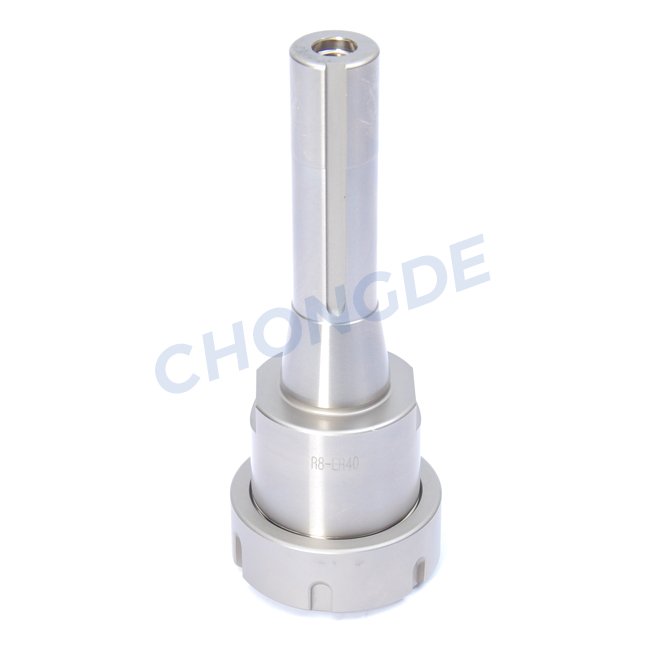

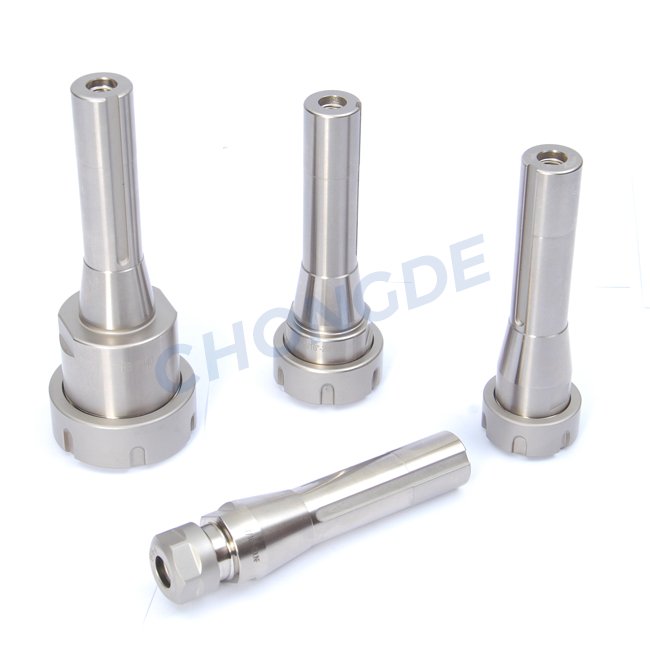

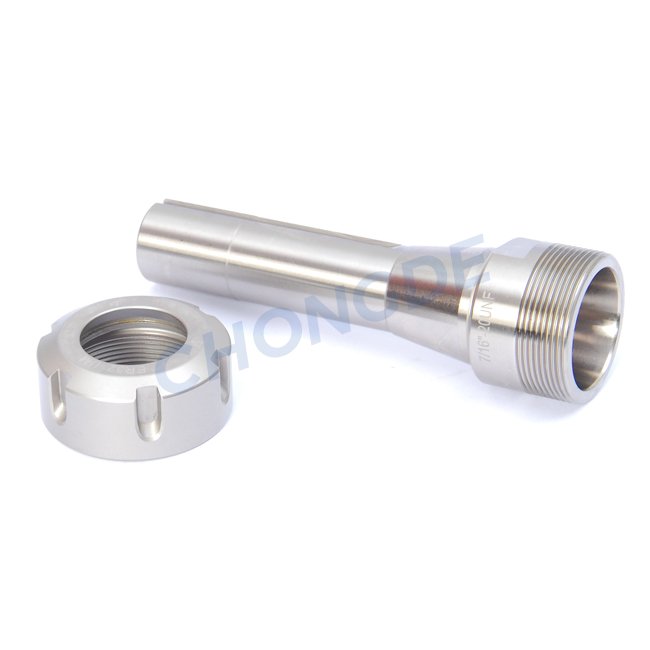

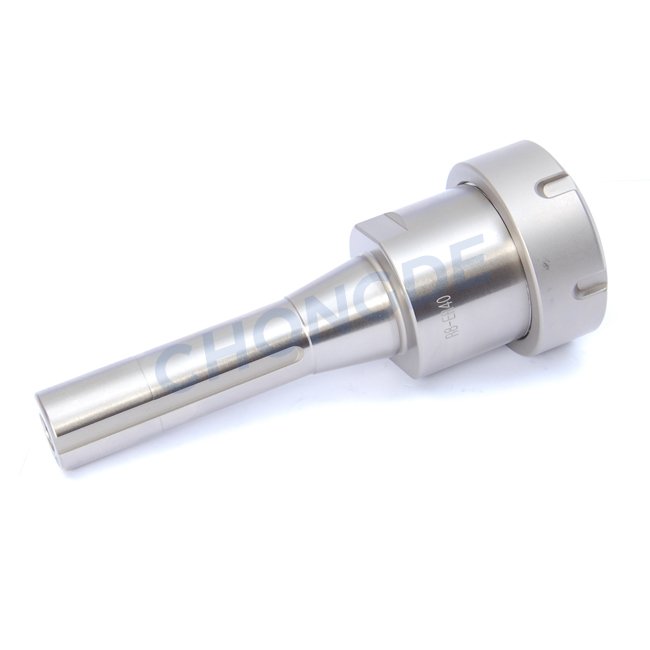

R8 ER Collet Chuck

R8 ER collet tool holder is designed with a locking keyway. When inserted into the spindle, the locking keyway is tightly coupled with a locking device. And then using a milling machine tie rod bolt pulls the cutter into the spindle, mounting and fastening.

The tool holder with integral nickel coating that makes the holder anti-rust, anti-corrosion, durability better. Through  -196℃ long Cryogenic Treatment and long time Thermal Aging Processing, the precision of tool holder and using life are higher and longer.

We are specializing in the production of R8 ER Spring Collet Chuck, we can to figure to sample processing, and perfect after-sales service and technical support. Looking forward to your cooperation!

Features:

1. Material: 20CrMnTi or JIS-SCM415

2. Hardness: 56-60HRC;

3. Carburizing depth: ＞0.8；

4. Roughness： Ra＜0.4u；

5. Designing with a locking keyway

6. Run out of the inside shank cone: ≤0.002mm；Coaxiality with collet : ≤ 0.005mm；

7. When ordering, please specify the screw thread with inch size or metric size.

Our advantages

1. Good Rigidity

2. High accuracy stability of parts processing and surface processing dimension

3. Improving cutting tool using life

4. The wear of taper shank caused by vibration is reduced during heavy cutting

5. ATC repeats the operation with high accuracy

6. The appearance with nickel coating, the products are anti-rust, anti-corrosion and durability better.

4. Clean appearance and accuracy stable

5. -196℃ long cryogenic treatment and ultra long time thermal aging processing, reducing residual stresses and increasing the hardness and toughness.
