Retention Knob SR Pull Studs for ST tool holders
- Manufactured to DIN / ISO / ANSI standards
- Antirust nickel plating & mirror finish
- OEM / ODM & custom sizes available
- Fast worldwide shipping
Retention Knob SR Pull Studs for ST tool holders

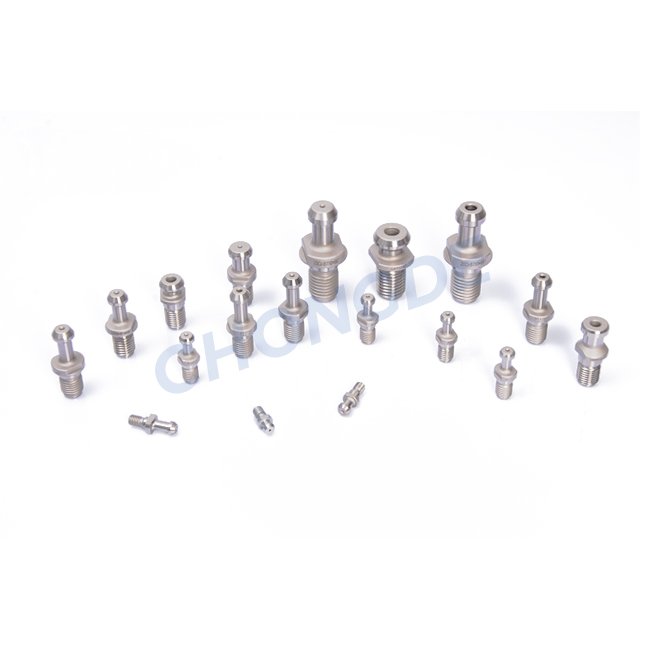

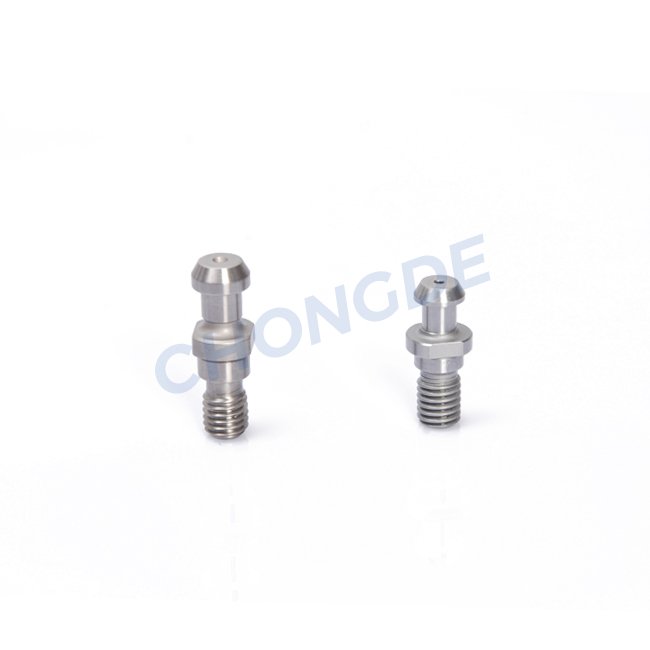

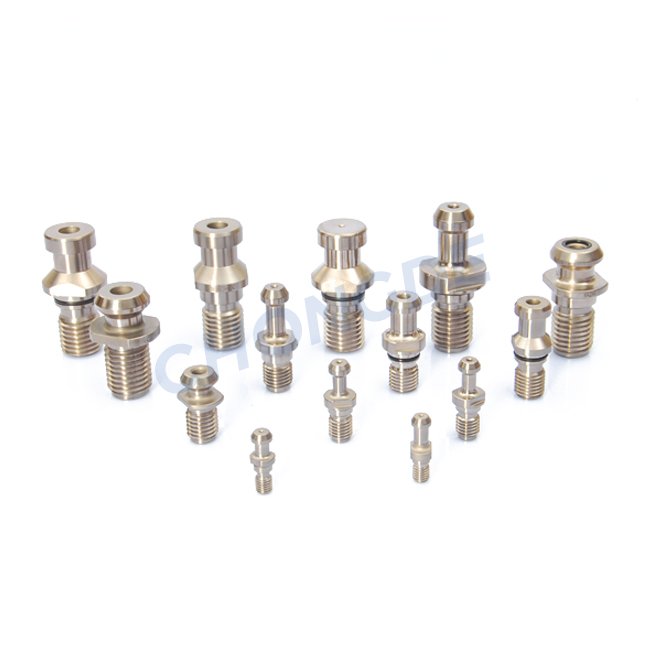

SR pull studs for ST type tool holders. It includes S5R,S10R,S15R,S20R,S25R for S5T,S10T,S15T,S20T,S25T separately. Made from high quality low carbon alloy steel 20CrMnTi processing thread after carburizing & quenching.
Kindly Note: Please make sure the Retention Knob you choose is the right one for your machine. Using wrong Retention Knob can cause damage to your machine.
Features:
1. Material: 20CrMnTi;
2. Hardness: 54-57 HRC;
3. Carbon depth:＞0.8；
4. Hardness of thread is lower: 35±5 HRC, to protect shank thread.
5. Cryogenic treatment and thermal aging treatment can reduce the inner residual stress, improve durability and precision stability.
6. The nickel coating surface of the pull stud has good effects of anti-rust and wear-resisting.
Product Drawing and Size
| Order No. | Model No. | l1 |
d4 | d5 | C2 | r3 | l4 | l7 | d03-0.1 | r1 | l05-0.1 | S00-0.2 | C1 |
| h7 | g6 | (Max) | |||||||||||
| CD130106.0555235 | S5R | 23.5 | 5.5 | M5 | 0.5 | 0.4 | 3 | 5 | 8 | 1 | 2.5 | 7 | 0.2 |
| CD130106.1065265 | S10R | 26.5 | 6.5 | M6 | 0.5 | 0.4 | 3 | 5 | 10 | 1.5 | 3 | 8 | 0.3 |
| CD130106.1585320 | S15R | 32 | 8.5 | M8 | 1 | 0.5 | 4 | 6 | 12 | 1.5 | 3.5 | 10 | 0.4 |
| CD130106.2085345 | S20R | 34.5 | 8.5 | M8 | 1 | 0.5 | 4 | 6 | 14 | 1.8 | 4 | 10 | 0.5 |
| CD130106.2510540 | S25R | 40 | 10.5 | M10 | 1 | 0.5 | 4 | 7 | 15.5 | 2 | 4.5 | 13 | 0.5 |
| Model No. | d01-0.1 | d02-0.1 | l02-0.1 | l03-0.1 | l6 | r2 | θ | l3-l5 | l9 | CHUCK | |
| Type1 | Type2 | ||||||||||
| S5R | 5.8 | 4 | 13.5 | 10.5 | 1.4 | 0.3 |
+0.5° 0 15° |
+0.5° 0 0° |
8 | 10 | S5T |
| S10R | 7 | 5 | 15.5 | 12 | 1.6 | 0.3 | 9 | 11 | S10T | ||
| S15R | 8.3 | 6 | 18 | 14 | 1.9 | 0.4 | 10.5 | 14 | S15T | ||
| S20R | 9.5 | 7 | 20.5 | 16 | 2.1 | 0.4 | 12 | 14 | S20T | ||
| S25R | 10.8 | 8 | 23 | 18 | 2.3 | 0.5 | 13.5 | 17 | S25T | ||
| Order No. | Model No. | l1 | d4 | d5 | C2 | r3 | l4 | l7 | d03-0.1 | r1 | l05-0.1 | S00-0.2 | C1 |
| h7 | g6 | (Max) | |||||||||||
| CD130106.0555235 | S5R | 23.5 | 5.5 | M5 | 0.5 | 0.4 | 3 | 5 | 8 | 1 | 2.5 | 7 | 0.2 |
| CD130106.1065265 | S10R | 26.5 | 6.5 | M6 | 0.5 | 0.4 | 3 | 5 | 10 | 1.5 | 3 | 8 | 0.3 |
| CD130106.1585320 | S15R | 32 | 8.5 | M8 | 1 | 0.5 | 4 | 6 | 12 | 1.5 | 3.5 | 10 | 0.4 |
| CD130106.2085345 | S20R | 34.5 | 8.5 | M8 | 1 | 0.5 | 4 | 6 | 14 | 1.8 | 4 | 10 | 0.5 |
| CD130106.2510540 | S25R | 40 | 10.5 | M10 | 1 | 0.5 | 4 | 7 | 15.5 | 2 | 4.5 | 13 | 0.5 |
