Ultra Precision ER20 High Speed Collet

Home / Products / ER (DIN6499B) Collet / Ultra …
Ultra Precision ER20 High Speed Collet
Ultra Precision ER20 High Speed Collet
Ultra Precision ER20 High Speed Collet
Ultra Precision ER20 High Speed Collet
Ultra Precision ER20 High Speed Collet
Ultra Precision ER20 High Speed Collet
ER (DIN6499B) Collet

Ultra Precision ER20 High Speed Collet

Ultra Precision ER20 Collet DIN6499B Chong…
  • Manufactured to DIN / ISO / ANSI standards
  • Antirust nickel plating & mirror finish
  • OEM / ODM & custom sizes available
  • Fast worldwide shipping
✉ admin@shandongchongde.com ☎ +86-15053793101

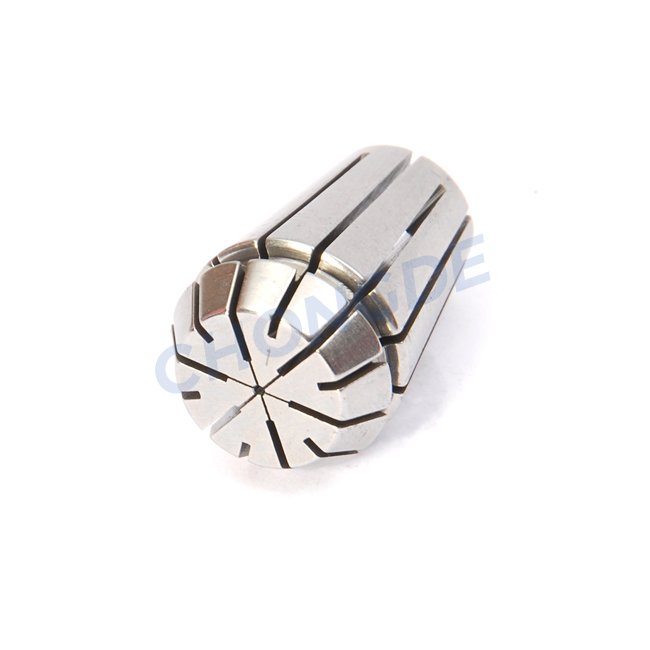

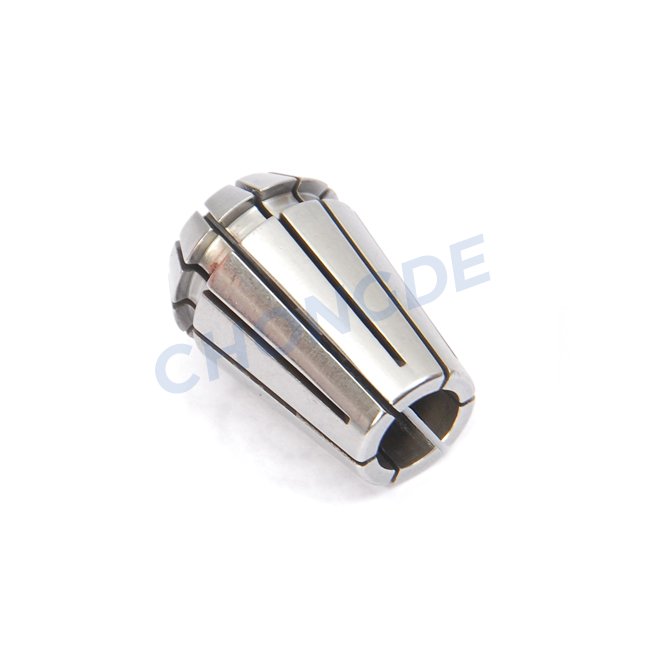

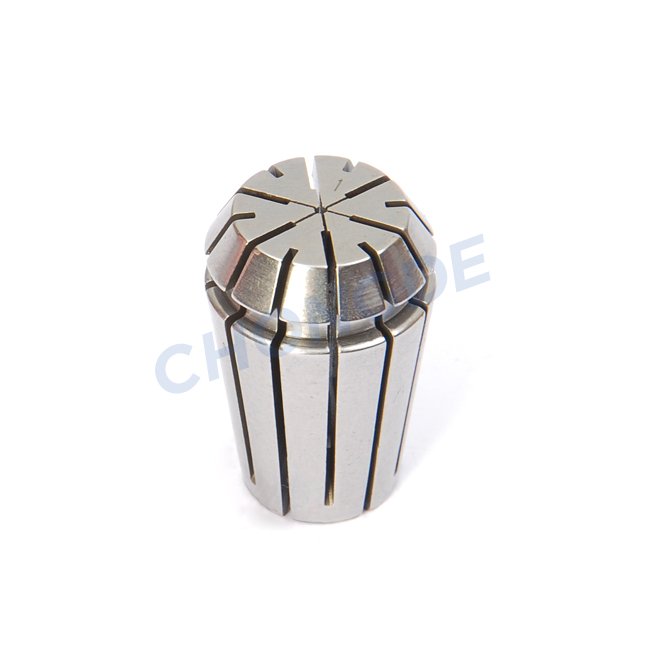

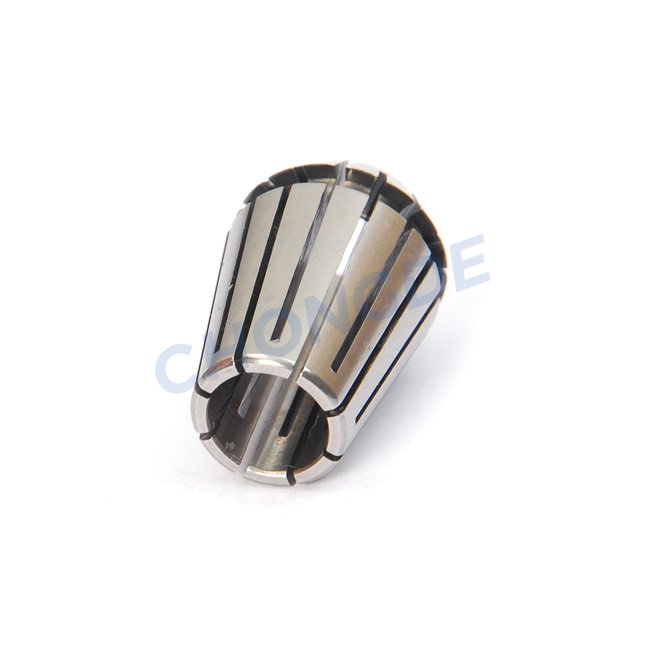

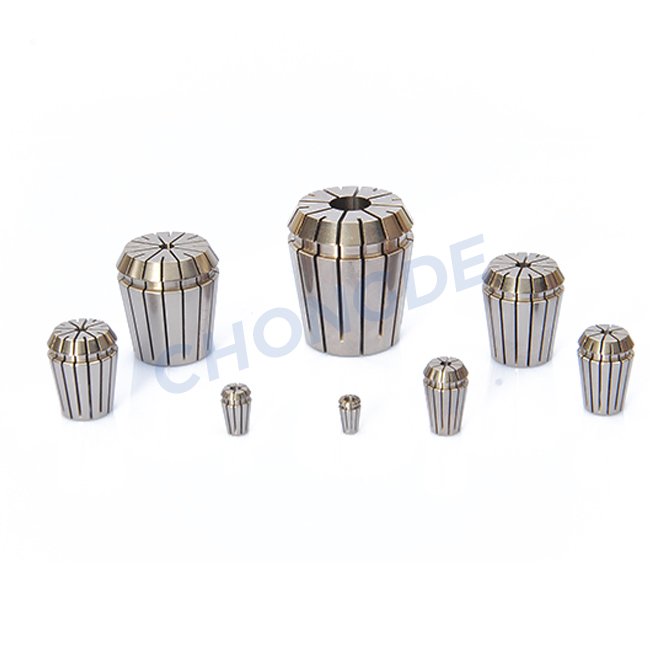

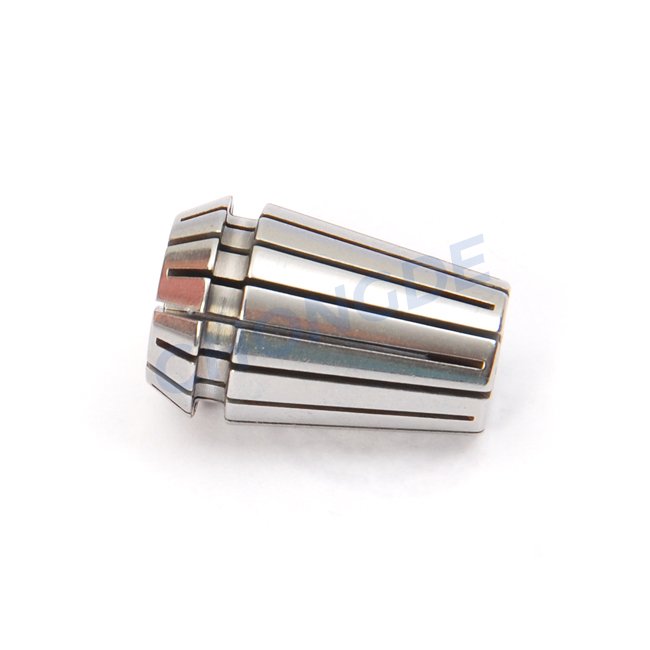

Ultra Precision ER20 Collet DIN6499B


ChongDe high precision ER20 collet DIN6499-form B(ER), concentricity is 5 microns or better, crafted from high quality Japanese JIS-SUJ2 material. Through -196℃ Cryogenic treatment and long time thermal aging processing, the stability of the collet is higher. Super slim size can avoid interference. Suitable for boring, milling, drilling, grinding, tapping, caving and reaming processing.


Features:


1. Material: JIS-SUJ2

2. Hardness: 46-50HRC;

3. Precision: ≤0.005mm；

4. End and the cylindrical are grinding for many times, can reach Ra 4.0, has a mirror effect;

5. 16 slot construction for rigid clamping and extra concentricity

6. True inch and metric size.

7. Suitable for boring, milling, drilling, tapping, grinding, carving and reaming processing.


Our advantages


1. Integrated precision : 3μ/5μ;

2. Imported material: JIS-SUJ2

3. Hardness: 46-50HRC

4. Clean appearance and accuracy stable

5. -196℃ long cryogenic treatment and ultra long time thermal aging processing, reducing residual stresses and increasing the hardness and toughness.

ER 筒夹 图纸_看图王


Product Drawing and Size


Model No.

dH7

D

D1

D2

L

L1

L2

L3

Collapsible Capacity

ER20

1.0-2.5

20

21

17.4

31.5

6.36

4.8

2.8

0.5

＞2.5-13.0

20

21

17.4

31.5

6.36

4.8

2.8

1


Clamping Range


ER20 ER20
Order No. Model  No. Range Order No. Model  No.
CD010201.20010 ER20-1 1-0.5 CD010201.20008 ER20-1/32
CD010201.20015 ER20-1.5 1.5-1 CD010201.20012 ER20-3/64
CD010201.20020 ER20-2 2-1.5 CD010201.20016 ER20-1/16
CD010201.20025 ER20-2.5 2.5-2 CD010201.20019 ER20-5/64
CD010201.20030 ER20-3 3-2 CD010201.20024 ER20-3/32
CD010201.20040 ER20-4 4-3 CD010201.20028 ER20-7/64
CD010201.20050 ER20-5 5-4 CD010201.20032 ER20-1/8
CD010201.20060 ER20-6 6-5 CD010201.20036 ER20-9/64
CD010201.20070 ER20-7 7-6 CD010201.20039 ER20-5/32
CD010201.20080 ER20-8 8-7 CD010201.20044 ER20-11/64
CD010201.20090 ER20-9 9-8 CD010201.20048 ER20-3/16
CD010201.20100 ER20-10 10-9 CD010201.20052 ER20-13/64
CD010201.20110 ER20-11 11-10 CD010201.20056 ER20-7/32
CD010201.20120 ER20-12 12-11 CD010201.20059 ER20-15/64
CD010201.20130 ER20-13 13-12 CD010201.20064 ER20-1/4
CD010201.20067 ER20-17/64
CD010201.20071 ER20-9/32
CD010201.20075 ER20-19/64
CD010201.20079 ER20-5/16
CD010201.20083 ER20-21/64
CD010201.20087 ER20-11/32
CD010201.20091 ER20-23/64
CD010201.20095 ER20-3/8
CD010201.20099 ER20-25/64
CD010201.20103 ER20-13/32
CD010201.20107 ER20-27/64
CD010201.20111 ER20-7/16
CD010201.20115 ER20-29/64
CD010201.20119 ER20-15/32
CD010201.20123 ER20-31/64
CD010201.20127 ER20-1/2
CD010201.20131 ER20-33/64

Model No.

dH7

D

D1

D2

L

L1

L2

L3

Collapsible Capacity

ER20

1.0-2.5

20

21

17.4

31.5

6.36

4.8

2.8

0.5

＞2.5-13.0

20

21

17.4

31.5

6.36

4.8

2.8

1
