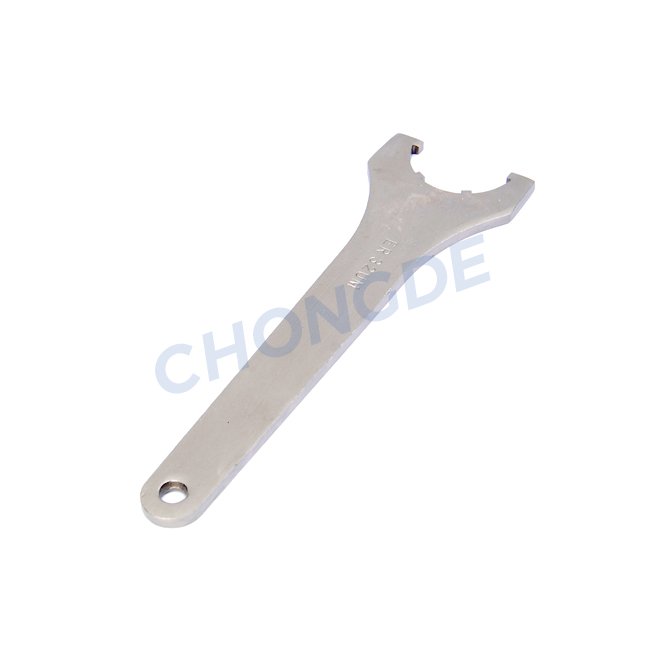

ER UM TYPE SPANNER FOR HIGH PRECISION ER COLLET CHUCKS
ER UM type spanner for Chongde high precision collet chucks. ER UM type wrench used for high precision ER UM type nut and high precision ER collet chucks. Available for ER16UM, ER20UM, ER25UM, ER32UM, ER40UM and ER50UM nut collet chuck.
Features:
1. Material: 45# OR 65Mn
2. Hardness: 40-45 HRC;
3. Appearance with sandblasting coating process.
Product Drawing and Size
| Order No. | Type | Model No | l | L | Nut |
| CD010401.1626180 | UM | ER16UM | 26 | 180 | ER16UM |
| CD010401.2030190 | ER20UM | 30 | 190 | ER20UM | |
| CD010401.2537210 | ER25UM | 37 | 210 | ER25UM | |
| CD010401.3247250 | ER32UM | 46.5 | 250 | ER32UM | |
| CD010401.4058290 | ER40UM | 58 | 290 | ER40UM | |
| CD010401.5074350 | ER50UM | 74 | 350 | ER50UM |
| Order No. | Type | Model No | l | L | Nut |
| CD010401.1626180 | UM | ER16UM | 26 | 180 | ER16UM |
| CD010401.2030190 | ER20UM | 30 | 190 | ER20UM | |
| CD010401.2537210 | ER25UM | 37 | 210 | ER25UM | |
| CD010401.3247250 | ER32UM | 46.5 | 250 | ER32UM | |
| CD010401.4058290 | ER40UM | 58 | 290 | ER40UM | |
| CD010401.5074350 | ER50UM | 74 | 350 | ER50UM |
