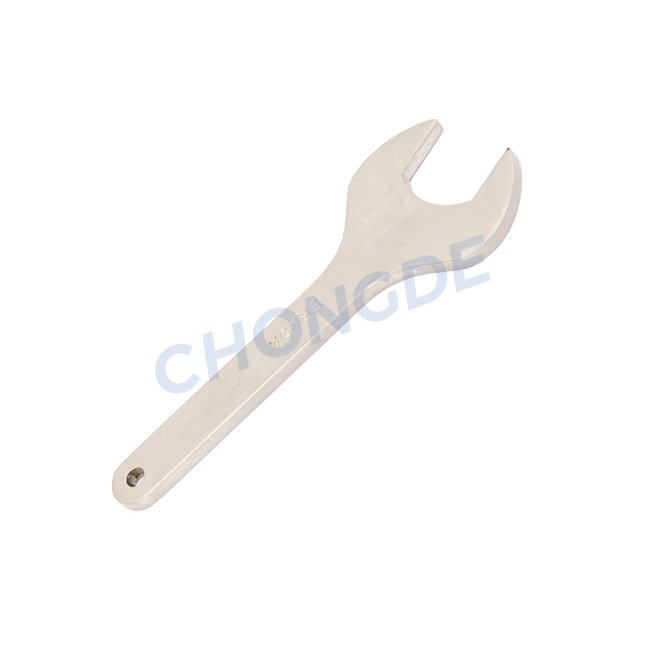

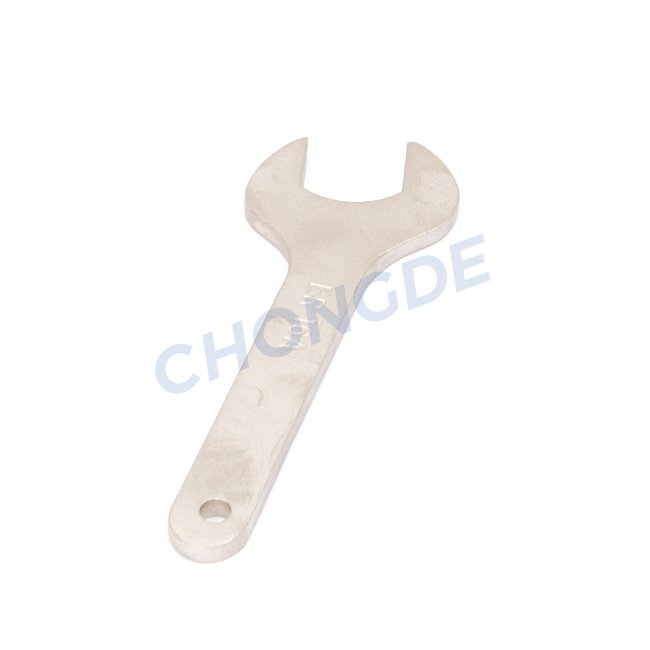

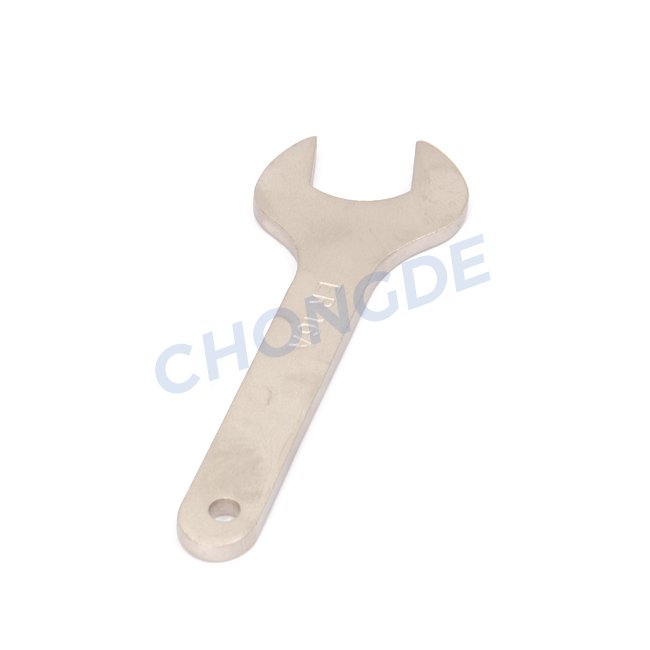

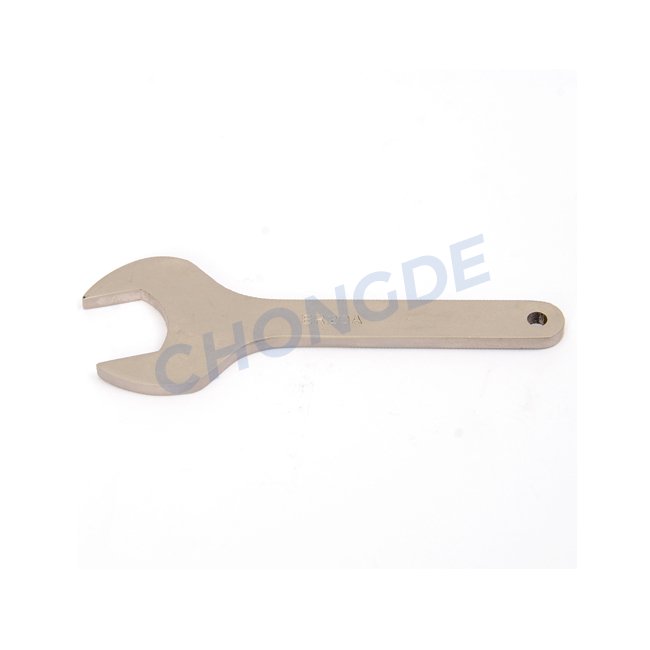

ER A TYPE SPANNER FOR HIGH PRECISION ER COLLET CHUCKS
ER A type spanner for Chongde high precision collet chucks. ER A type wrench used for high precision ER A type nut and high precision ER collet chucks. Available for ER8A, ER11A, ER16A, ER20A nut collet chuck.
Features:
1. Material: 45# OR 65Mn
2. Hardness: 40-45 HRC;
3. Appearance with sandblasting coating process.
Product Drawing and Size
| Order No. | Type | Model No | l | L | Nut |
| CD010401.0813100 | A | ER8 | 13 | 100 | ER8A |
| CD010401.1117110 | ER11A | 17 | 110 | ER11A | |
| CD010401.1625120 | ER16A | 25 | 120 | ER16A | |
| CD010401.2030130 | ER20A | 30 | 130 | ER20A |
| Order No. | Type | Model No | l | L | Nut |
| CD010401.0813100 | A | ER8 | 13 | 100 | ER8A |
| CD010401.1117110 | ER11A | 17 | 110 | ER11A | |
| CD010401.1625120 | ER16A | 25 | 120 | ER16A | |
| CD010401.2030130 | ER20A | 30 | 130 | ER20A |
