ER M TYPE SPANNER FOR HIGH PRECISION ER COLLET CHUCKS

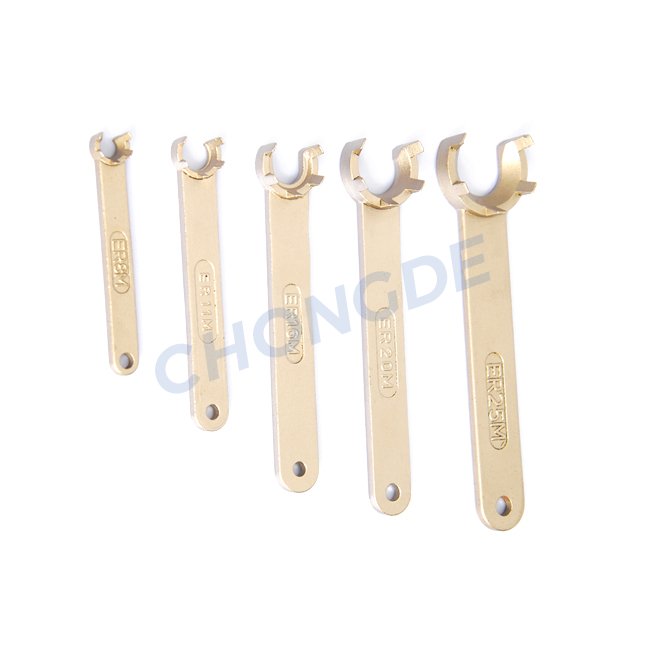

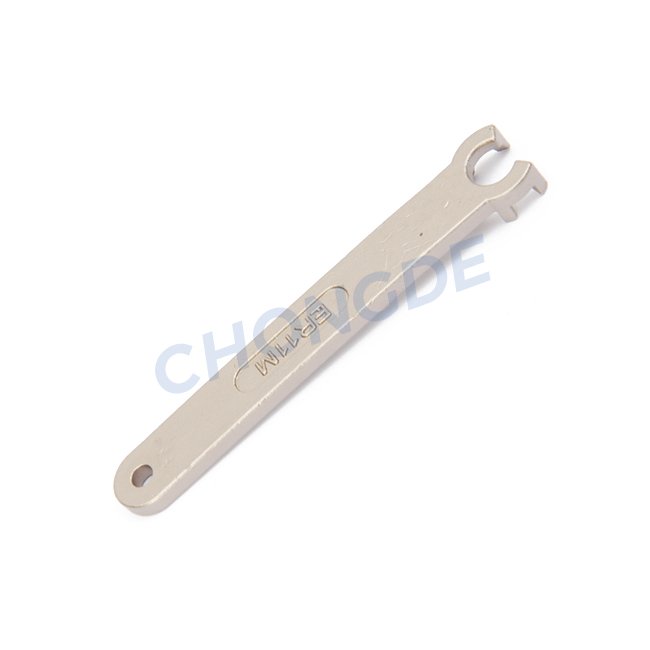

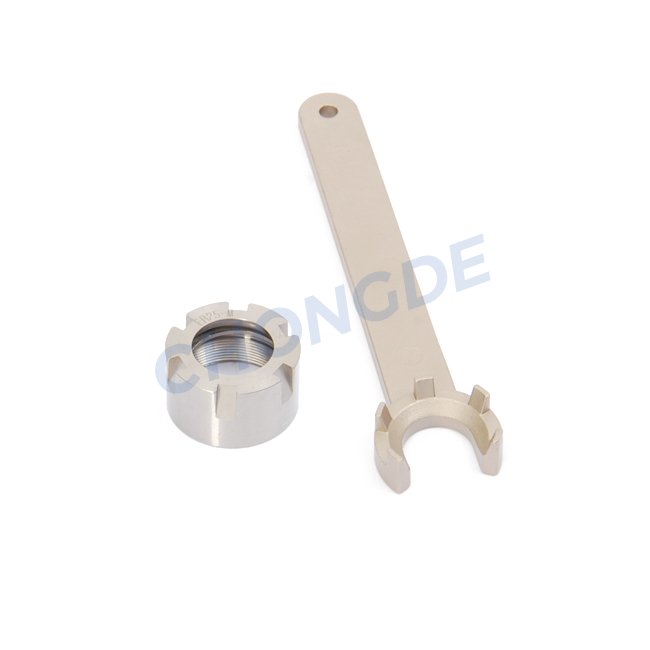

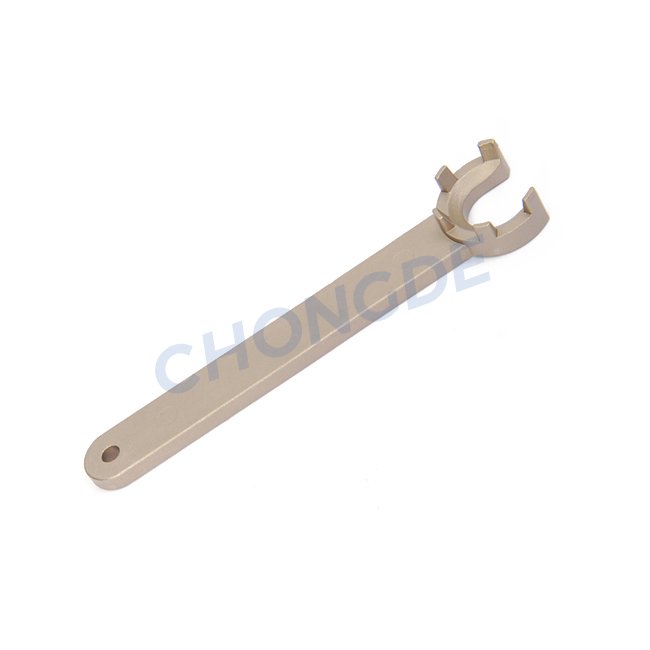

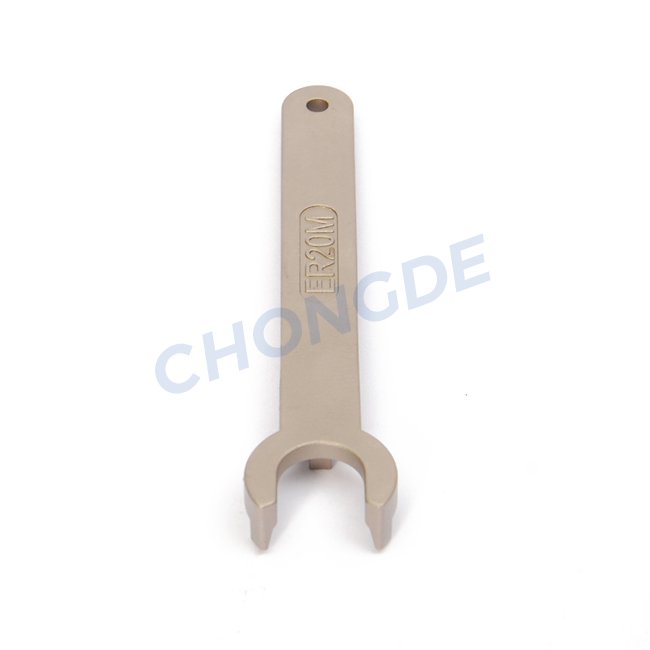

ER M type spanner for Chongde high precision collet chucks. ER M type wrench used for high precision ER M type nut and high precision ER collet chucks. Available for ER8M, ER11M, ER16M, ER20M and ER25M nut collet chuck.
Features:
1. Material: 45# OR 65Mn
2. Hardness: 40-45 HRC;
3. Appearance with sandblasting coating process.
Product Drawing and Size
| Order No. | Type | Model No | l | L | Nut |
| CD010401.0875070 | M | ER8M | 7.5 | 70 | ER8M |
| CD010401.1111090 | ER11M | 11 | 90 | ER11M | |
| CD010401.1615110 | ER16M | 15 | 110 | ER16M | |
| CD010401.2020120 | ER20M | 19.5 | 120 | ER20M | |
| CD010401.2525130 | ER25M | 25 | 130 | ER25M |
| Order No. | Type | Model No | l | L | Nut |
| CD010401.0875070 | M | ER8M | 7.5 | 70 | ER8M |
| CD010401.1111090 | ER11M | 11 | 90 | ER11M | |
| CD010401.1615110 | ER16M | 15 | 110 | ER16M | |
| CD010401.2020120 | ER20M | 19.5 | 120 | ER20M | |
| CD010401.2525130 | ER25M | 25 | 130 | ER25M |
